Specifications :

• Case: Steel case, powder coated/ nickel plated finish; Case Length 67 mm; Backset 42 mm
• Bolt: Extruded brass section; Bolt Length 17 mm
• Striking Plate: Steel plate, nickel plated finish; Available for both single and double doors.
• Levers: 6 steel levers, zinc plated & passivated.
• Keys: Steel keys, nickel plated finish.
• Locking Face Plate: Brass/ Steel plate, lacquered/ nickel plated finish.

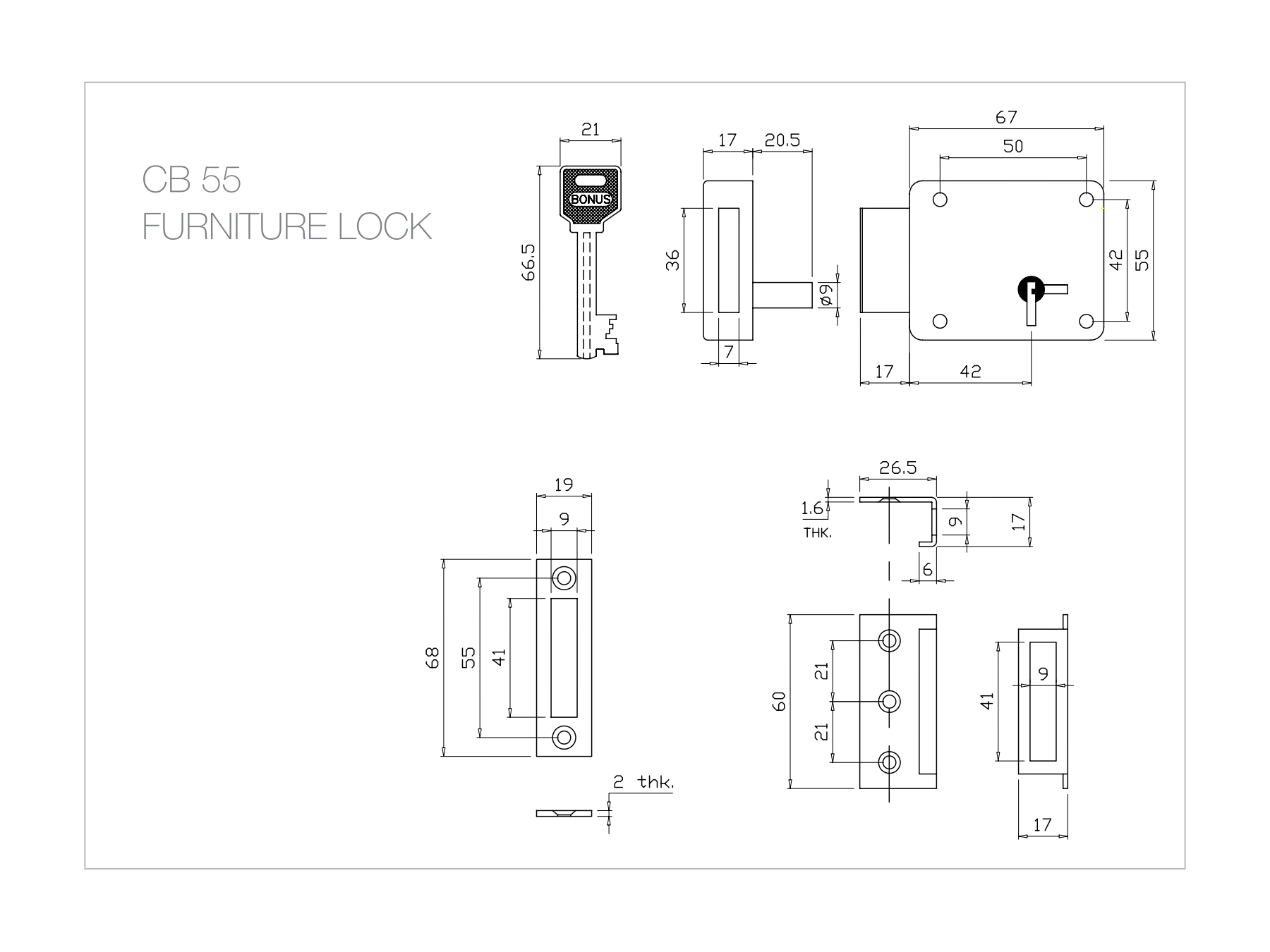

Line Diagram :
