CB 50 FURNITURE LOCK
CB 50 FURNITURE LOCK
Specifications :
- Case: Steel case, powder coated/ nickel plated finish; Case Length 66 mm; Backset 33 mm.
- Bolt: Extruded brass section; Bolt Length 20 mm.
- Striking Plate: Steel plate, nickel plated finish; Available for both single and double doors.
- Lever Tumbler: Zinc alloy die-casted tumbler; operates on 7 levers.
- Tumbler length 30mm.

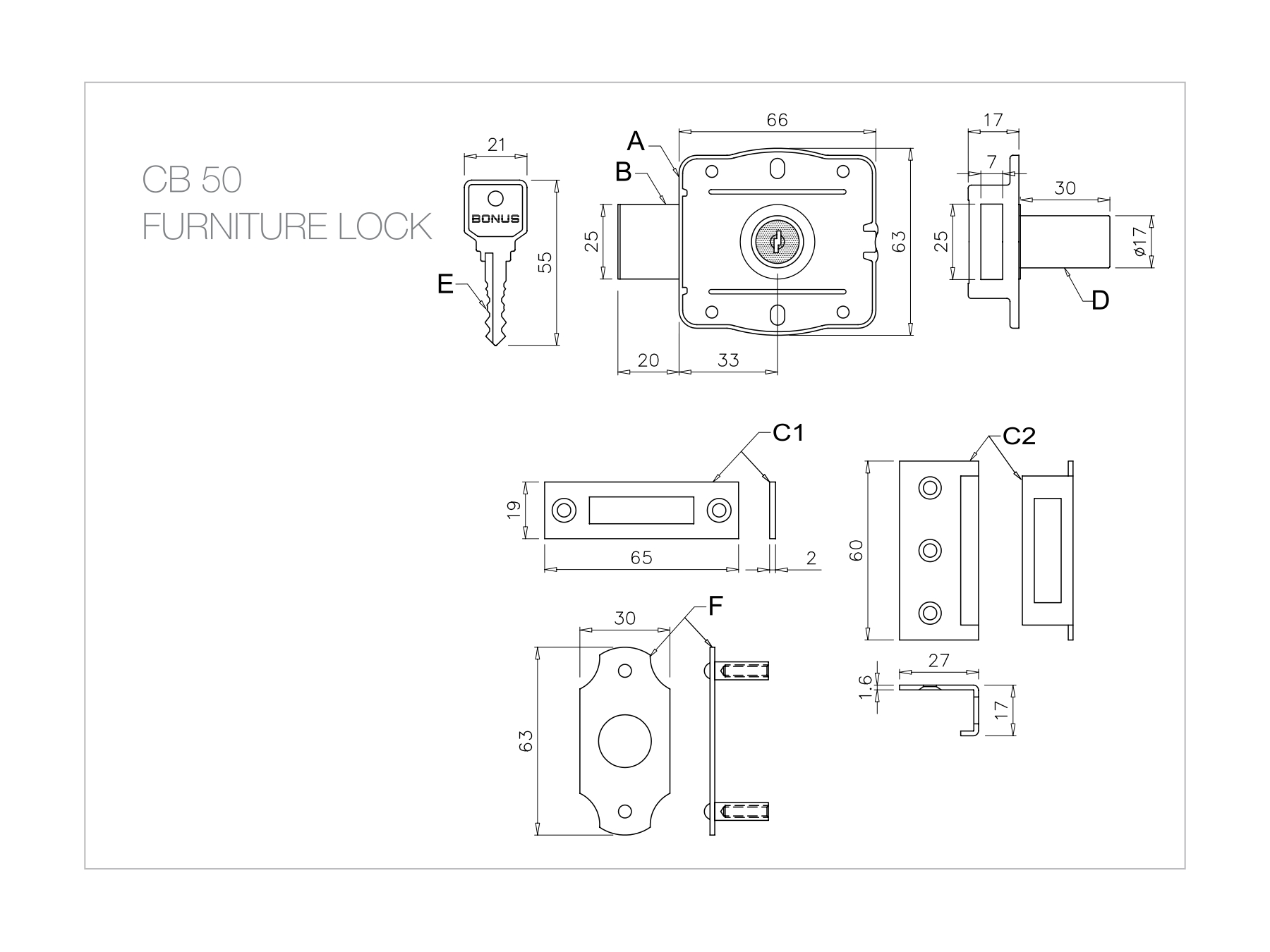

Line Diagram :
